Grid Aim System Manfrotto 405 Geared Head

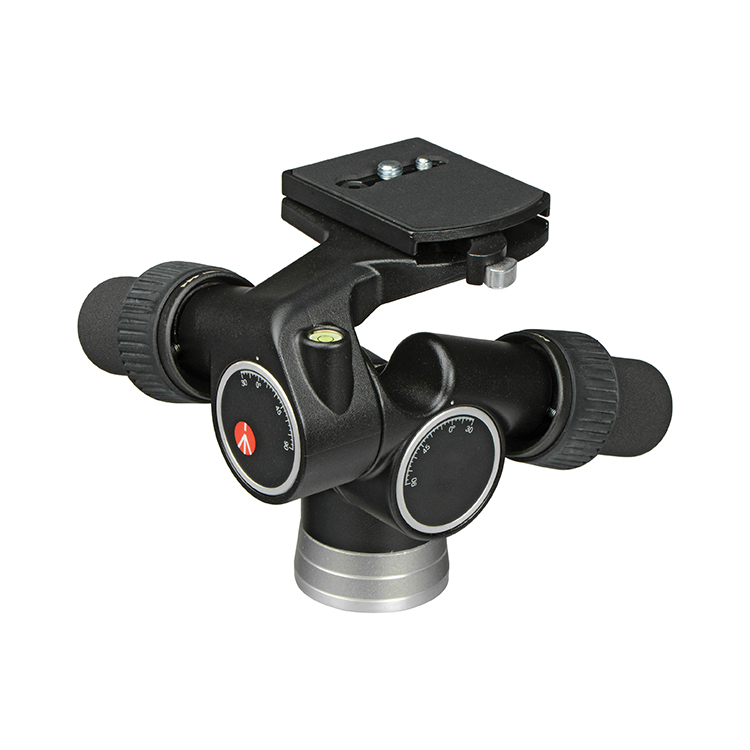

This 405 3-Way, Geared Pan-and-Tilt Head from Manfrotto has a load capacity of 16.5 lb and can be attached to tripods or other support systems that feature a 3/8″-16 mount. It includes an integrated RC4 quick release cam lock and a 410PL Quick Release Plate. RC4 compatible quick release plates such as the 410PL can removed from the head by pulling the cam lock’s spring-loaded lever, which also allows the plate to be instantly reattached.

Cameras or accessories that are compatible with a 1/4″-20 or 3/16″-20 mount can be connected to the 410PL Quick Release Plate, which measures 2.5 x 3.3 x 0.5″ and has a rubberized, non-slip surface. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other and have individual, snap-lock knobs with easy-to-turn, fluted grips. Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place. An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments, which help to ensure that any device mounted to this 405 3-Way, Geared Pan-and-Tilt Head is precisely positioned relative to the subject.

To further promote fast and repeatable device positioning, this 405 3-Way, Geared Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility.
